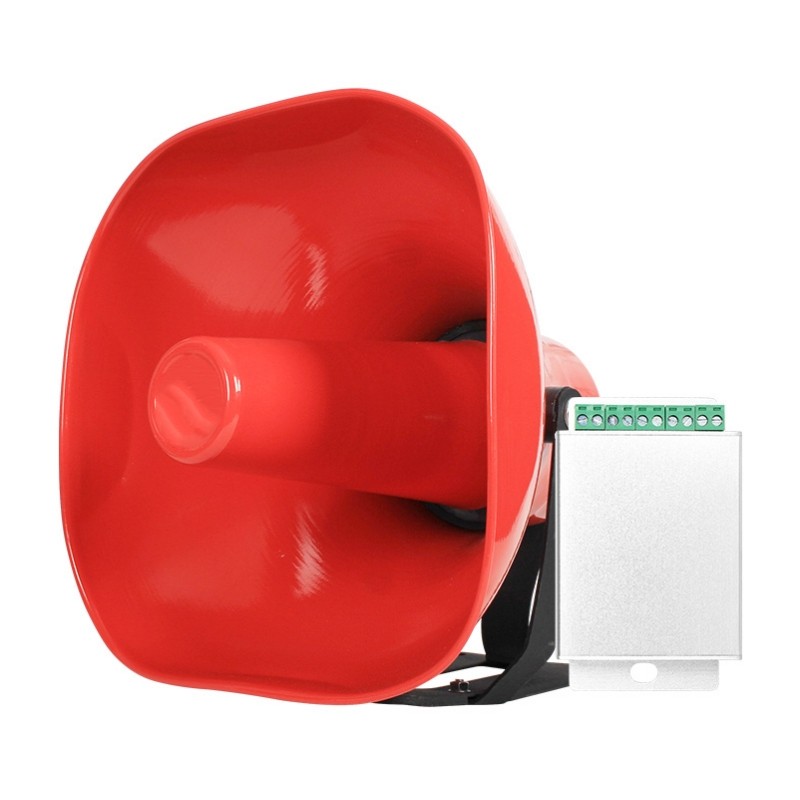

FN-A507 High Power Programmable MP3 Siren Horn 50W Horn Loudspeaker with Triggerable MP3 Player

Features

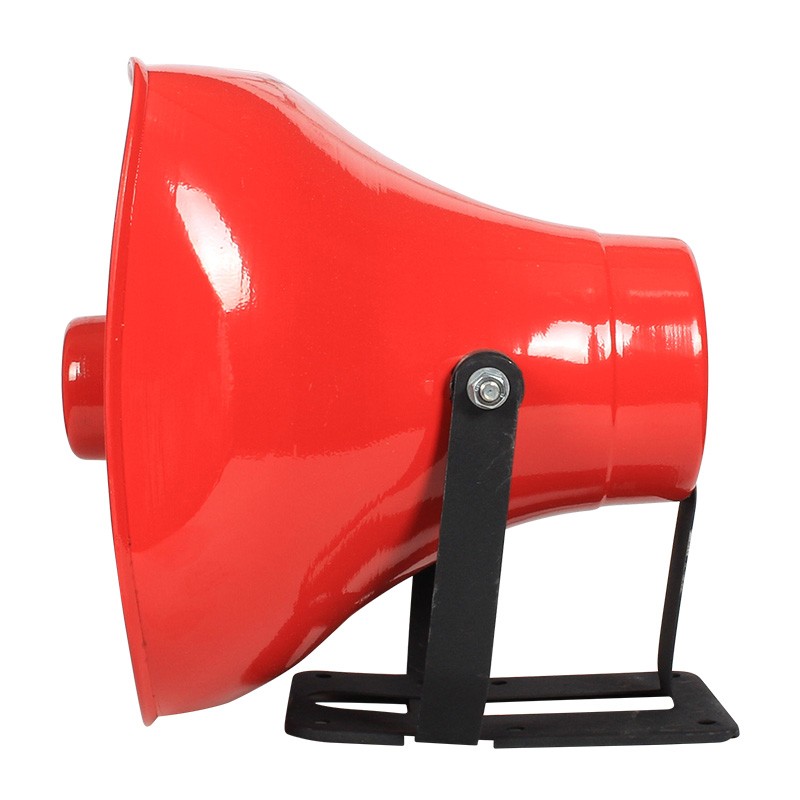

1. The horn body is made of high-quality aluminium alloy.

2. The audio player has 6 trigger inputs available and can be triggered by buttons/switches/relays/PLC.

    -Negative trigger version and positive trigger version available.

3. The function / trigger mode of each input can be set individually through a configuration file.

4. Built-in high quality audio decoder that is able to decode MP3 and WAV audio formats.

5. Built-in 8Mbytes flash memory by default, and supports max. 32GB micro SD card.

6. Able to update audio files through USB connection on computer.

   -No need any program/software. The audio player will be detected as a USB flash drive on computer.

7. Built-in a mono 50watts class D amplifier and a stereo audio output jack.

8. 12-40V DC wide power input and stable performance.

9. Adjustable sound volume through the potentiometer.

10. Industrial grade design and strong anti-jamming capability.



Technical Parameters

1. Working voltage: 12-40V DC

2. Working current: ≥4500mA (Input: 12V)

3. Output power: 50W

4. Flash memory size: 8Mbytes

5. Audio format: MP3/WAV

6. Speaker impedance: 8ohm


Dimensions

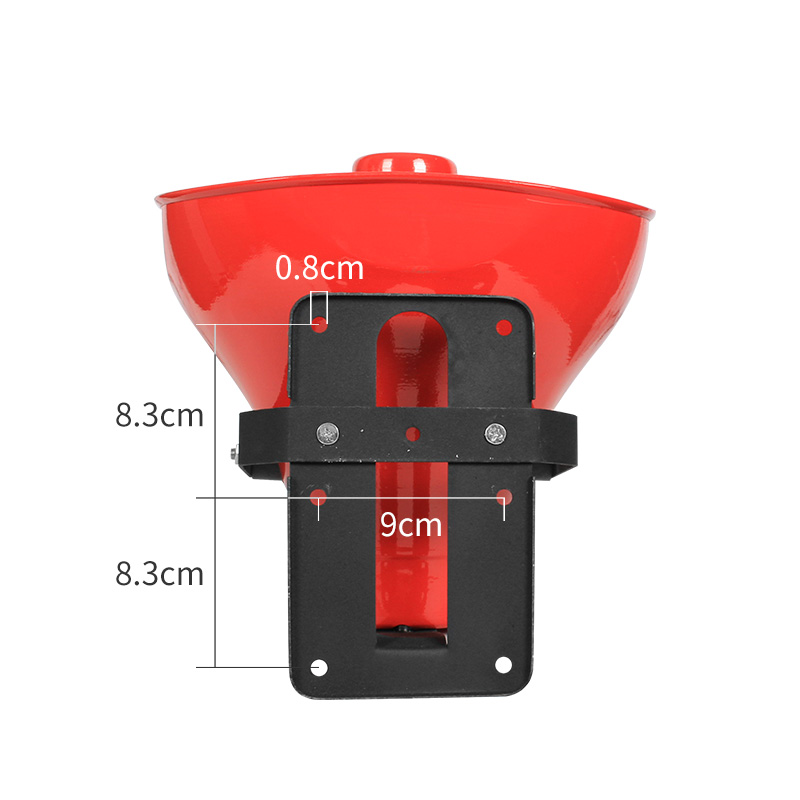

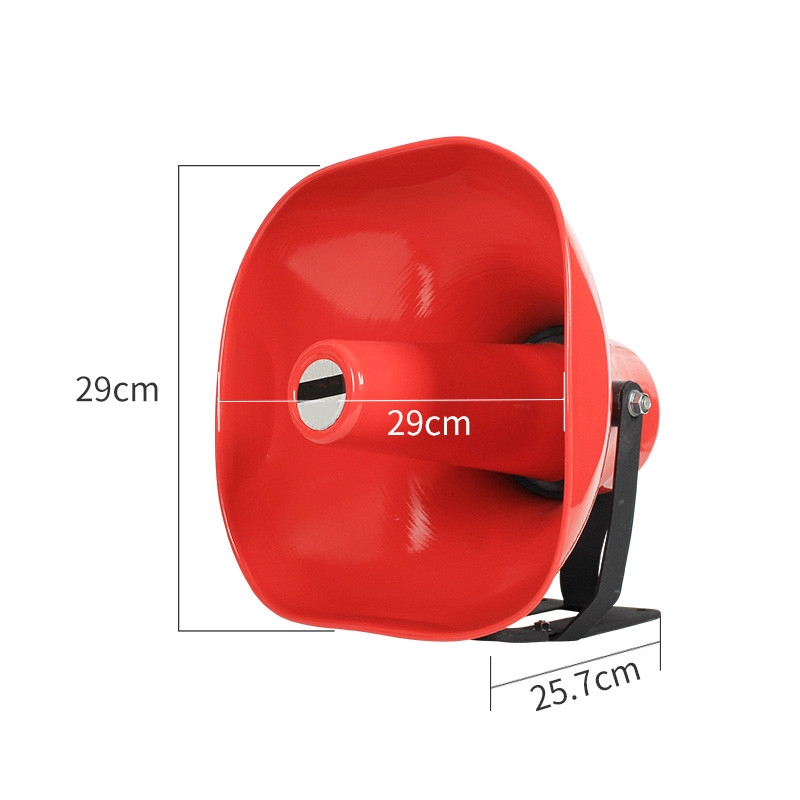

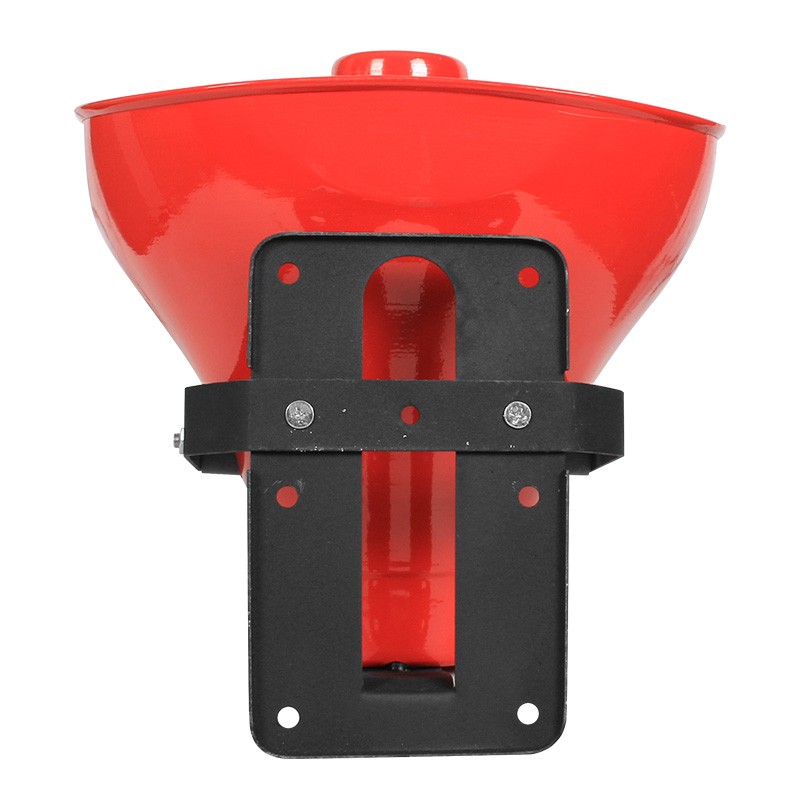

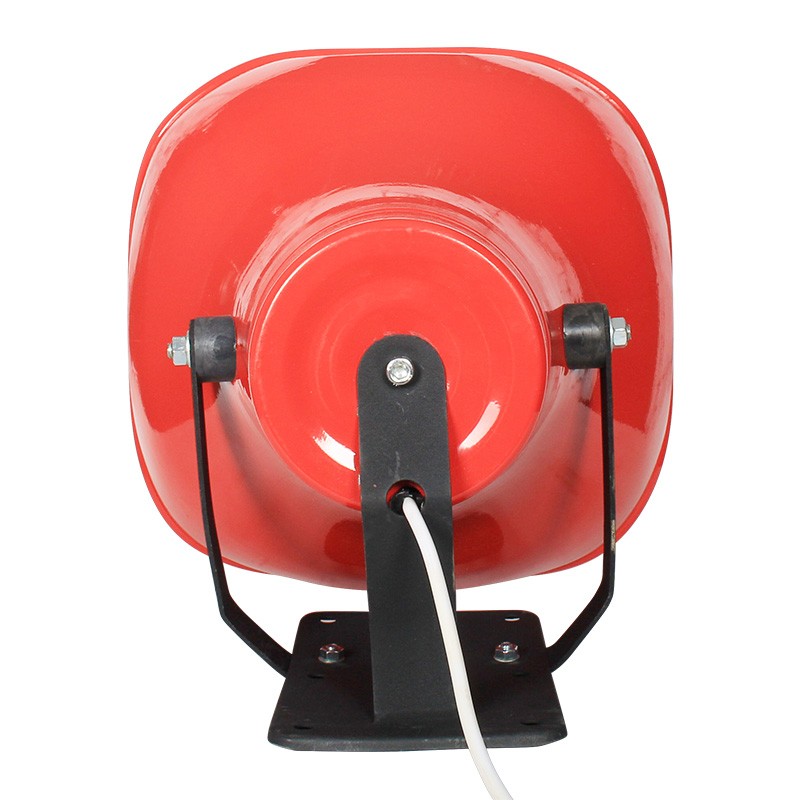

1. Horn

FN-A507 DM.jpg

FN-A507 (3).jpg

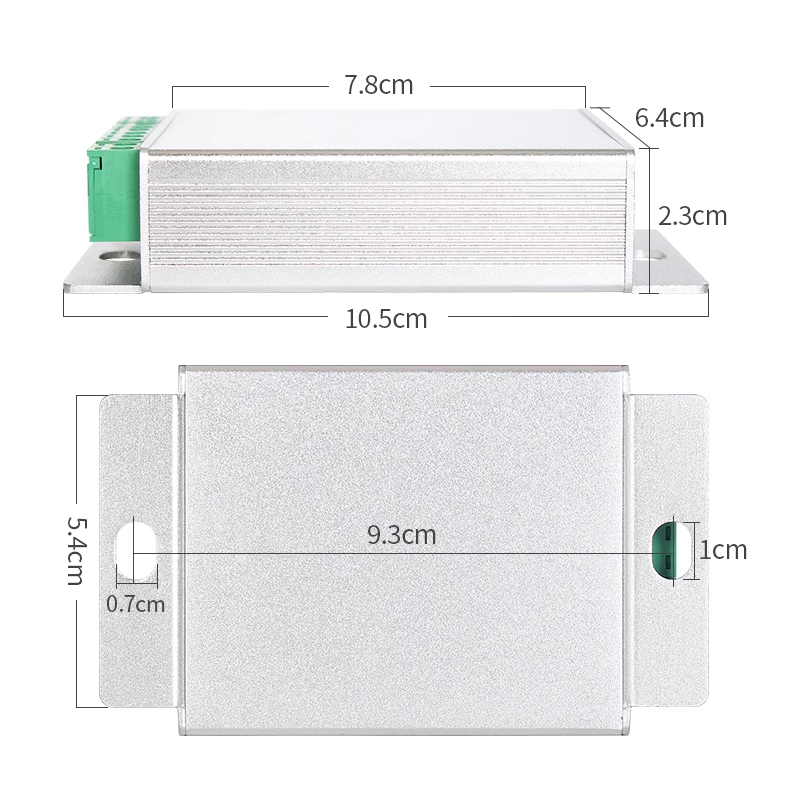

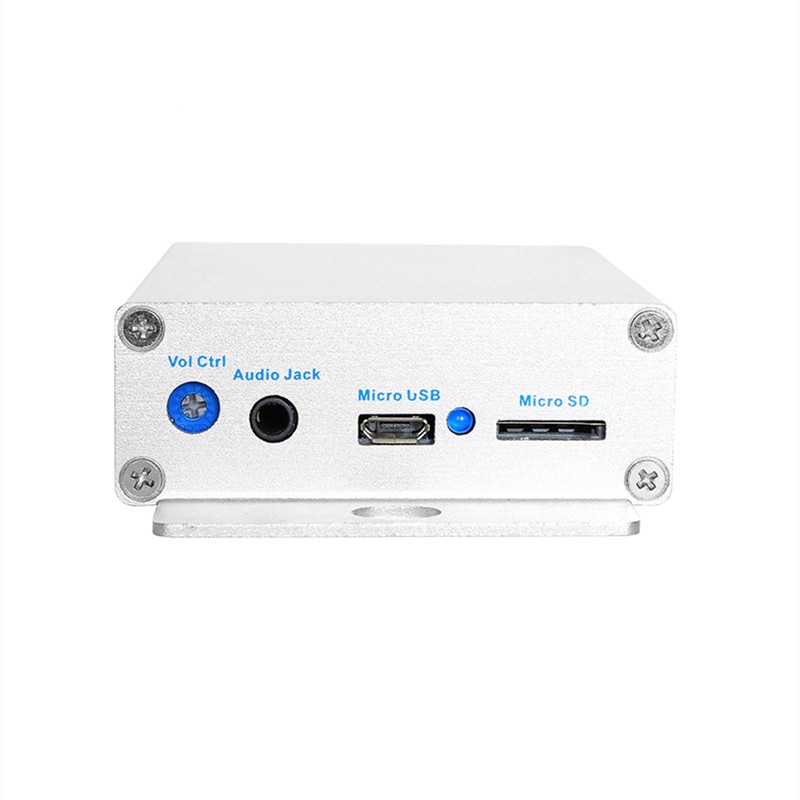

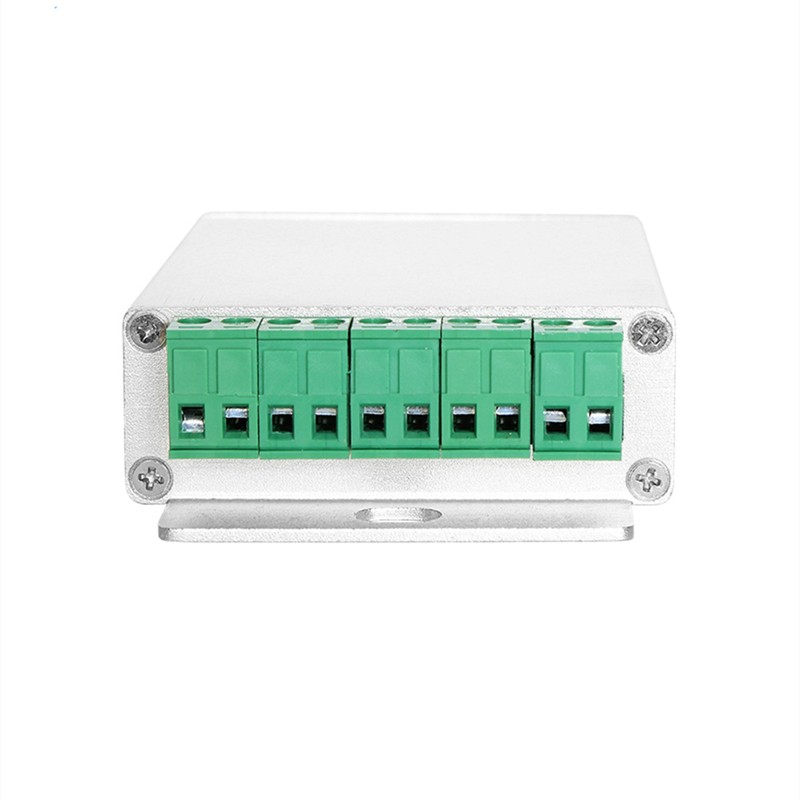

2. Audio Player


Trigger Modes / Function Settings

There are 7 main trigger modes(from “0”to “6”) and 5 assistant trigger modes(from “7”to “B”) available for users to set in a configuration file according to the actual needs


Each of the parameters from “0”to “B”represents a corresponding trigger mode, which an be set individually for each of the 6 trigger inputs. See the details below.


Parameter

Corresponding Trigger Mode

0

Pulse Interruptible

1

Hold and Play in Loop

2

Pulse Non-interruptible

3

Hold and Play Once

4

All in Loop

5

Play Next in Associated Folder

6

Single in Loop

7

Play/Pause

8

Previous

9

Next

A

Vol+

B

Vol-


Detailed Explanations on the Main Trigger Modes 0-6

· Pulse Interruptible: In this mode, a single negative pulse will start playbackIt is possible to interrupt the playback by pressing the same button used to activate. Once playback is interrupted,it will automatically restart the audio file immediately. It’s also possible to interrupt the play back by pressing any of the other 3 buttons. Once playback is interrupted, it will automatically start the sound that is associated with the button pressed.


· Hold and Play in Loop: In this mode, the negative pulse must be held/maintained to the sound module trigger for audio file to complete. The audio file will only playback while button, or negative pulse, is held/maintained during playback. Once the button being held, or negative pulse, is removed, the playback will be stopped/cancelled. Once the button is kept holding, when the playback of the audio file is finished, it will start to play it repeatedly(loop playback).


· Pulse Non-interruptible: In this mode, a single negative pulse will start playbackIt's not possible to interrupt the playback by pressing the same button or the other buttons. Once an audio file is triggered, the audio file will not be able to be interrupted/cancelled during playback. The playback will only end when the audio file has played its entirety.


· Hold and Play Once: In this mode, the negative pulse must be held/maintained to the sound module trigger for audio file to complete. The audio file will only playback while button, or negative pulse, is held/maintained during playback. Once the button being held, or negative pulse, is removed, the playback will be stopped/canceled. Once the button is kept holding, when the playback of the audio file is finished, it will not start to play it again.


· All in Loop: In this mode, a single negative pulse will start playbackPress the button and it’s able to play all the audio files in the storage device one by one in loop. During playback, if the the same button is pressed again, the playback will be stopped. In addition, if the associated trigger input is shortened with GND first, the player will automatically play the audio files one by one in loop once it is powered on.


· Play Next in Associated Folder: In this mode, a single negative pulse will start playback.Every time press the button and it’s able to play next audio file and stops when the audio file is finished in the associated folder. During playback, if the the same button is pressed again, the playback will be interrupted and it will activate the next audio file at the same time. In this mode, as many as 100 audio files can be loaded into the folder.


· Single in Loop: In this mode, a single negative pulse will start playbackPress the button and it’s able to play the associated audio file in loop. During playback, if the the same button is pressed again, the playback will be stopped.


Any of these 12 work modes can be set for any of the 6 trigger inputs through a configuration file named “read.cfg”, which comes from a text file(.txt) originally. In the configuration file, each digit that represents the work mode is associated with one trigger input, so there are total of 6 digits that associate 6 trigger inputs respectively.


Examples of Connections

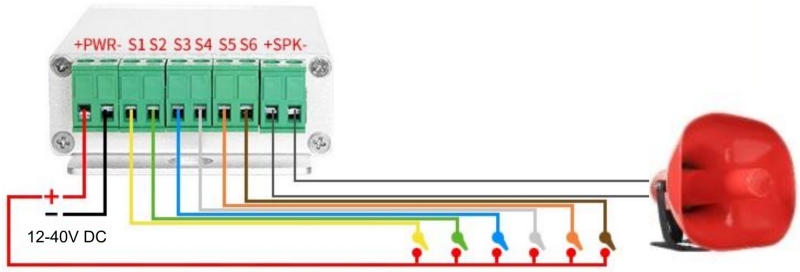

1. Negative Trigger Version

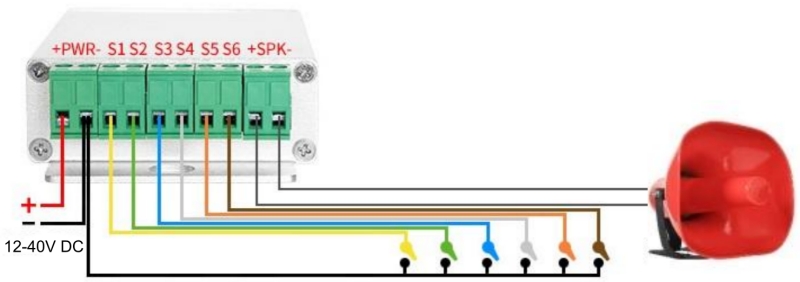

2. Positive Trigger Version



Note: A 2m long wire used for connecting the audio player to the horn included.
