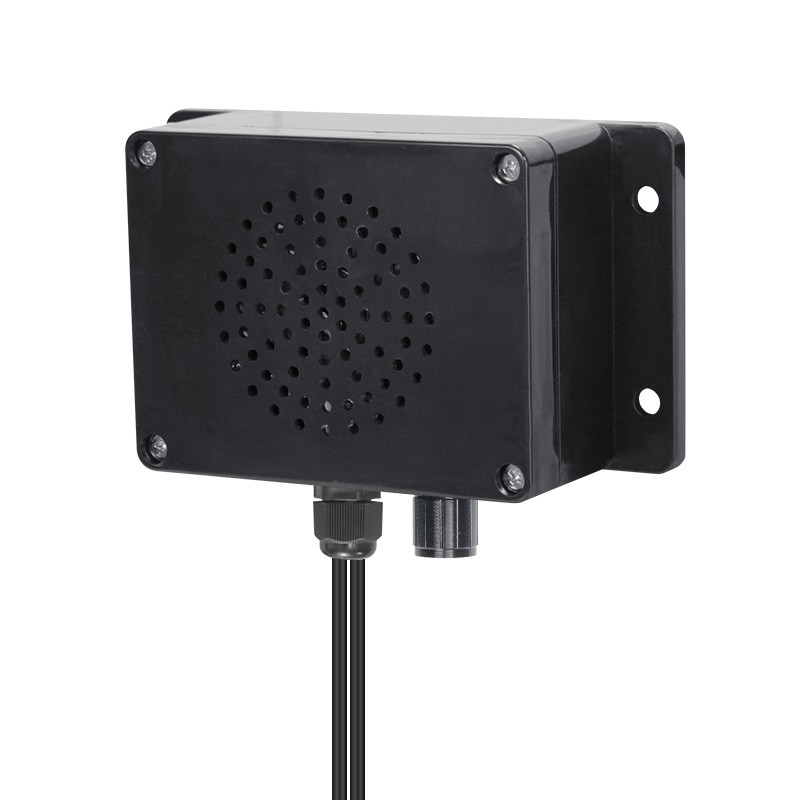

FNP-707 Microwave Sensor Motion Activated Audio Player for Outdoor Use

Features

1. Adopts a solid and good sealed plastic case as well as a quality waterproof speaker.

2. Built-in microwave sensor that is able to detect a moving person or object.

3. Built-in high quality MP3 player with great sound quality.

4. Equipped with a 8MB flash memory that can store about 8 minutes long MP3 format files (based on 128Kbps).

5. Equipped with a micro SD slot and supports max. 32GB micro SD card on the internal circuit board.

6. Update audio files easily through USB connection to computer.

    -It’ll work as a USB flash drive on computer.

7. Supports loading multiple audio files into the memory.

8. Supports two trigger modes (play next file and play a file in random) after each activation when there are multiple files.

9. Volume is adjustable through turning the knob at the bottom.

10. Rainproof and moistureproof, so it can be used outdoors.

11. Industry grade design and stable performance.

*When you need to insert a micro SD card, you need to open the case first and find the internal circuit board.

Technical Parameters

1. Working voltage: 12-24V DC

2. Working current: ≥1000mA

3. Power Consumption: ≤10W

4. Flash memory size: 8Mbytes

5. Audio format: MP3

6. Sound pressure level: ≤100dB

7. Detection distance: ≤7m (NOT adjustable)

8. Detection angle: 110±10°

9. Protection class: IP65

How it works

1). After the device is powered on, there is an initialization time of 5-10 seconds. During initialization, the device is not working. After initialization, the device will immediately enter the working state.

2). When the microwave sensor detects someone or an object is moving in the detection area in front of the device, it will immediately trigger the playback of the pre-recorded sound message. During playback, even if a person or object moves in front of the device, the sound will not be interrupted until the sound playback is complete.

3). After the sound is played, there is a blocking time of 2-3 seconds before it can be triggered again.

Location of Microwave Sensor

Dimensions
