FN-A501B Programmable MP3 Musical Car Horn Customizable Sound Siren Horn

Features

1. Built-in high quality audio player sound board.

2. Built-in 8MBytes flash memory.

3. Supports MP3 and WAV formats.

4. Upload sound files easily using the included USB connector.

    -No need any software/program. It’ll be detected as a USB flash drive on computer.

5. Able to trigger one sound or multiple sounds.

    -When there are multiple sound files, each time it is triggered it’ll play a sound in order.

    -Also it can be set to play a sound randomly each time it is triggered.

6. Equipped with a high quality class D 20 watts amplifier IC.

7. Uses a high quality car horn with solid magnet.

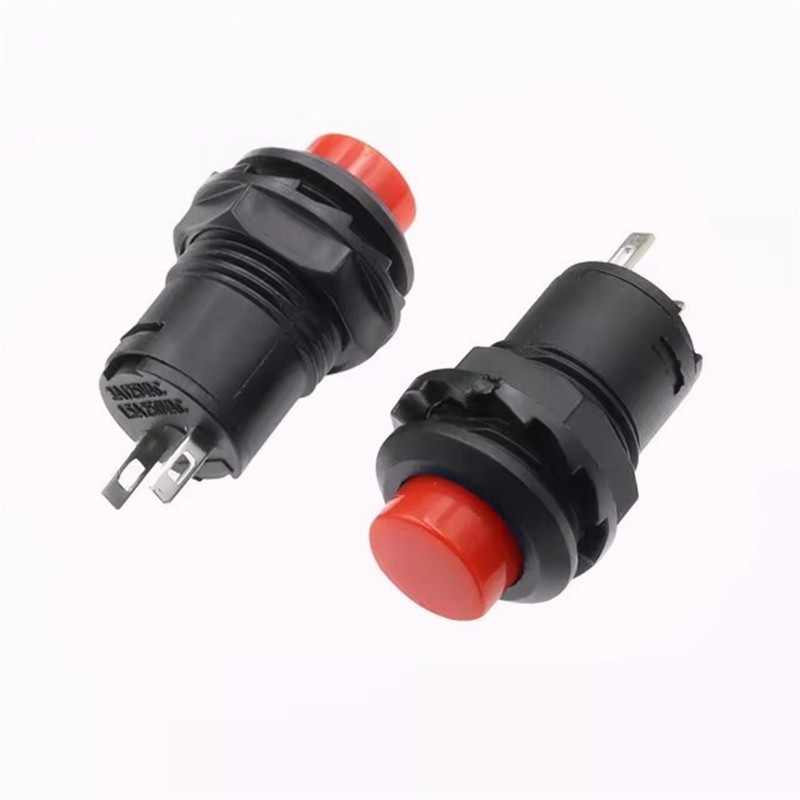

8. Comes with a self-reset push button.

Technical Parameters

1. Working voltage: 12V-24V DC

2. Working current: ≥2000mA

3. Standby current: ≤10mA

4. Power consumption: ≤20W

5. Flash memory size: 8MBytes

6. Audio format: MP3 or WAV (≤16bit)

7. Sound pressure level: ≤110dB

8. Protection class: IP65

Size

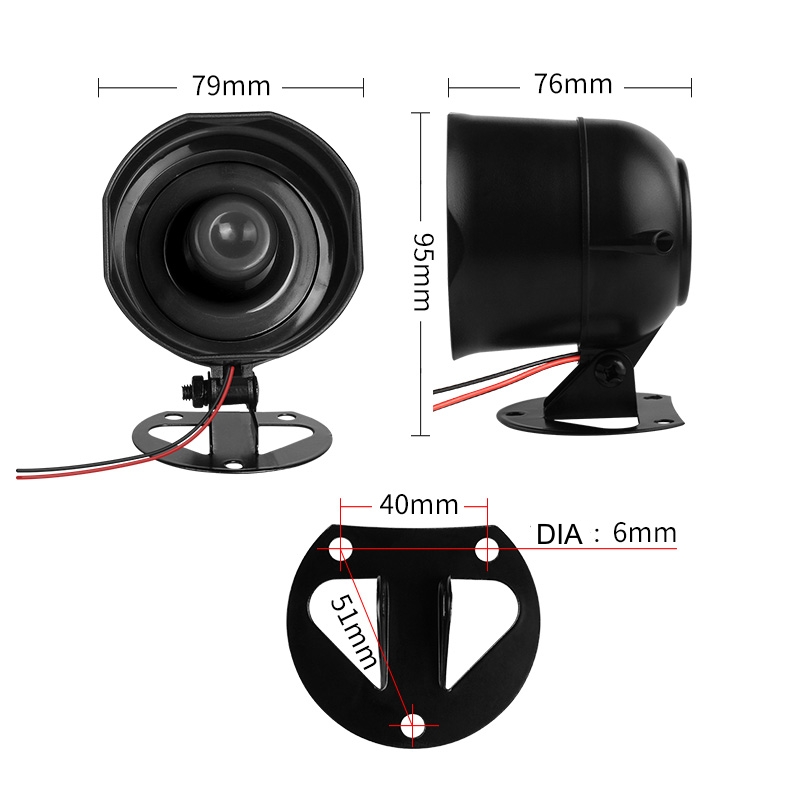

1. About the Horn

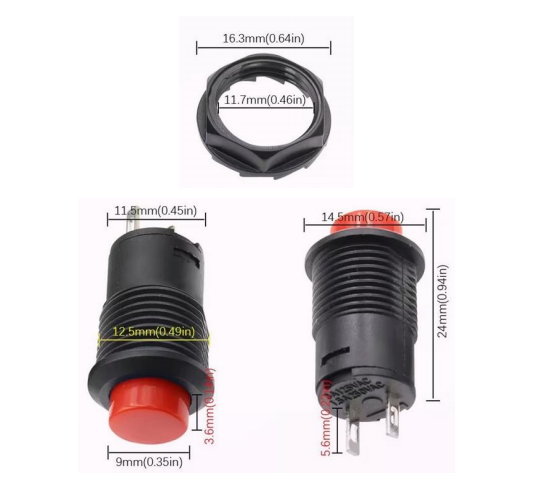

2. About the Push Button Included

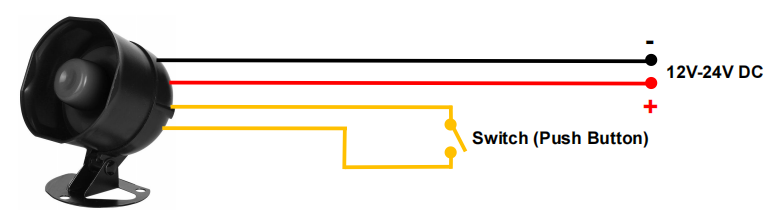

Example of Wiring Connection
