FN-T718A MP3 Triggerable Audio Player Industrial MP3 Player with 50W*2 Amplifier

FN-T718A MP3 Triggerable Audio Player Industrial MP3 Player with 50W*2 Amplifier

FN-T718A is a MP3 triggerable audio player (industrial audio player) designed to provide stereo audio output for museum exhibits, talking displays and other industrial/commercial applications. It has not only a built-in 8MB flash memory but also a slot for a micro SD card as well as a USB connector for a USB pen drive that hold the sound file(s), and connectors for up to 7 push buttons for sound activation. Upon activation the unit will immediately play the sound file once (by default) and become ready for the next activation. And it supports 11-type trigger modes to meet different needs in different applications. A trigger mode can be set with a config file easily. Besides, it's possible to switch on an external LED light during playback of a sound file. Please note that a computer is required for copying sound files onto a storage device (built-in flash memory, micro SD card or USB pen drive).

BUY

Features

1. Built-in a high quality MP3 player with 8MB flash memory.

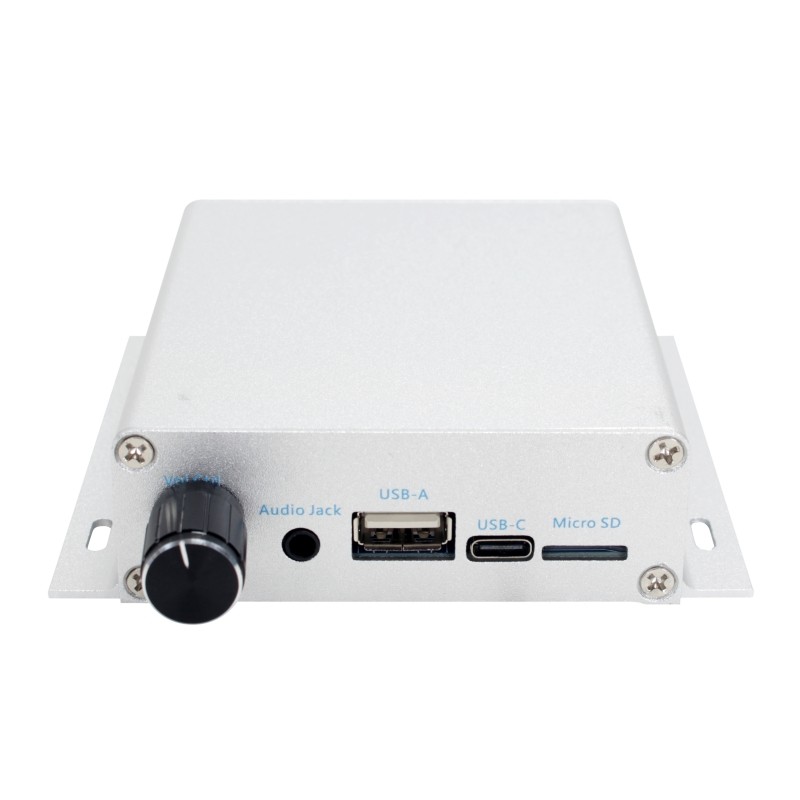

2. Supports inserting USB flash drive (into the USB-A port) and micro SD card as the extended storage devices.

3. Supports max. 32GB USB flash drive and max. 32GB micro SD card.

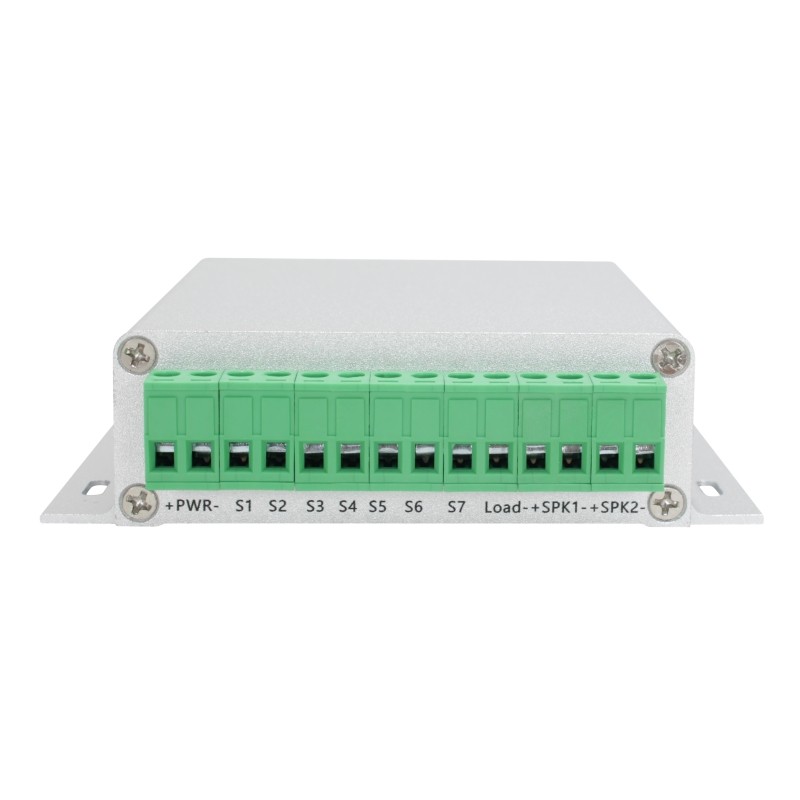

4. 7 trigger inputs available and they can be connected with as many as 7 push buttons/switches/relays, etc.

5. Supports 11 types of trigger modes and each trigger mode can be set easily through a config file (text document).

6. Built-in a 50W*2 class D amplifier and the audio output is powerful.

7. Upload audio files easily on computer via USB connection.

-Connect the USB-C port to computer using a USB data cable.
-The internal memory and the micro SD card (if it is inserted) will be detected as USB flash drives on computer.

8. Sound volume is adjustable through turning the volume knob.

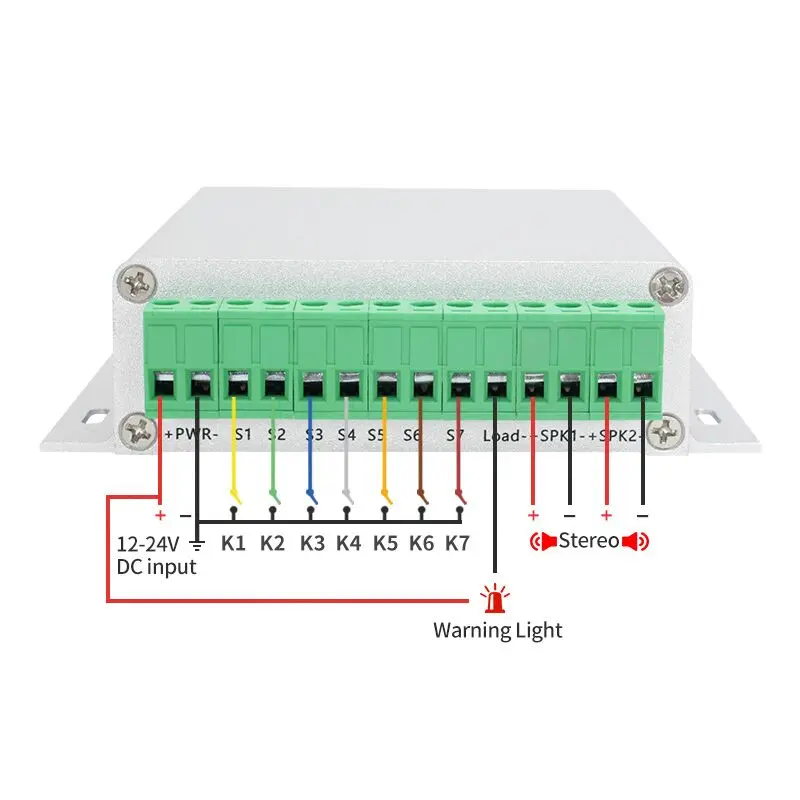

9. Able to drive an external equipment like a warning light or a motor simultaneously when it is playing a sound.

10. Equipped with a 3.5mm audio output jack that can be connected to an external amplifier or an active speaker.

11. Adopts solid and durable aluminium alloy case.

12. Industrial grade design and strong anti-jamming capability.

Technical Parameters

1. Working voltage: 12-24V DC

2. Working current: ≥8500mA @12V (when it has two 50W speakers)

≥4250mA @24V (when it has two 50W speakers)

3. Power consumption: ≤100W

4. Flash memory size: 8MB

5. Audio format: MP3 or WAV (≤16bit)

11 Type Trigger Modes

Number in Config File	Corresponding Trigger Mode
0	Short press the button to start playing, and during playing, if you press the button again, the playback will be interruptible and it will play from the beginning.
1	Press the button and hold to start playing repeatedly, and when the button is released the board stops playing.
2	Short press the button to start playing, and during playing, if you press the button again, the playback will be NOT interruptible.
3	In this mode, a single negative pulse will startplayback.It's not possible tointerrupt the playbackby pressing the same button or the other buttons. Once an audio file is triggered, the audio file will not be able to be interrupted/canceled during playback. If there is a continuous pulse signal or the button is held/maintained before the audio file plays its entirety, it’ll play the audio file again
4	In this mode, a single negative pulse will startplayback.Press the button and it’s able to play the associated audio file in loop. During playback, if the the same button is pressed again, the playback will be stopped.
5	Combination of the first four trigger ports (S1-S4) for playback of maximum 15 audio files (pulse interruptible)
6	Combination of the first four trigger ports (S1-S4) for playback of maximum 15 audio files (hold and play in a loop)
7	MP3 Player Mode: S1 for Next, S2 for Previous, S3 for random playback of one of audio files, S4 for Volume Up, S5 for Volume Down, S6 for Play/Pause, S7 for Stop (In this mode, if trigger S1 and GND are shorted together, when powered on it’ll automatically play the audio files one by one in a loop)
8	When the contact opens or the button is released, it'll start to play the associated audio file for one time.
9	When the contact opens or the button is released, it'll start to play the associated audio for one time (same as mode # 8), During playback, once the contact closes or the button is pressed, it'll stop.
A	When the contact opens or the button is released, it'll start to play the associated audio file repeatedly (in a loop). During playback, once the contact closes or the button is pressed, it'll stop.

Notes:

1). If there is no config file on the built-in flash memory/micro SD card/USB flash drive, the device will always work with the mode “0”by default.

2). Mode 8, 9 and A are special modes. When you’re using any of these three modes, the device will only play the sound when the contact opens or the button is released. It doesn’t play when the contact closes or the button is pressed.

Dimensions
