FN-T718 Industrial MP3 Player with 50W*2 Amplifier 7 Triggers Audio Player Message Repeater for Museum Exhibits and Talking Display

FN-T718 Industrial MP3 Player with 50W*2 Amplifier 7 Triggers Audio Player Message Repeater for Museum Exhibits and Talking Display

The FN-T718 is an industrial MP3 player designed to provide stereo audio output for museum exhibits, talking displays and other industrial/commercial applications. It has not only a built-in 8MB flash memory but also a slot for a micro SD card as well as a USB connector for a USB pen drive that hold the sound file(s), and connectors for up to 7 push buttons for sound activation. Upon activation the unit will immediately play the sound file once (by default) and become ready for the next activation. And it supports 10-type trigger modes to meet different needs in different applications. A trigger mode can be set with a config file easily. Besides, it's possible to switch on an external LED light during playback of a sound file. Please note that a computer is required for copying sound files onto a storage device (built-in flash memory, micro SD card or USB pen drive).

Features

1. Negative trigger version, positive trigger version, and 5 trigger inputs + RS485 version are available.

2. Built-in high quality audio decoder and 8MBytes flash memory.

3. Supports inserting USB flash drive (into the USB-A port) and micro SD card as the extended storage devices.

4. Supports max. 32GB USB flash drive and max. 32GB micro SD card.

5. 7 trigger inputs available and they can be connected with as many as 7 push buttons/switches/relays, etc.

- 5 trigger inputs + RS485 version is also available for those who need to control the player via RS485 communication.

6. Supports 10 types of trigger modes and each trigger mode can be set easily through a config file (text document).

7. Built-in a 50W*2 class D amplifier and the audio output is powerful.

8. Upload audio files easily on computer via USB connection.

-Connect the USB-C port to computer using a USB data cable.

-The internal memory and the micro SD card (if it is inserted) will be detected as USB flash drives on computer.

9. Sound volume is adjustable through turning the volume knob.

10. Able to drive an external equipment like a warning light or a motor simultaneously when it is playing a sound.

11. Equipped with a 3.5mm audio output jack that can be connected to an external amplifier or an active speaker.

12. Adopts solid and durable aluminium alloy case.

13. Industrial grade design and strong anti-jamming capability.

Technical Parameters

1. Working voltage: 12-24V DC

2. Working current: ≥8500mA @12V (when it has two 50W speakers)

≥4250mA @24V (when it has two 50W speakers)

3. Power consumption: ≤100W

4. Flash memory size: 8MB

5. Audio format: MP3 or WAV

10-Type Trigger Modes

Number in Config File	Corresponding Trigger Mode
0	Short press the button to start playing, and during playing, if you press the button again, the playback will be interruptible and it will play from the beginning.
1	Press the button and hold to start playing repeatedly, and when the button is released the device stops playing.
2	Short press the button to start playing, and during playing, if you press the button again, the playback will be NOT interruptible.
3	In this mode, K1 works as Next, K2 Previous, K3 Play/Pause, K4 Stop, K5 Volume Up, K6 Volume Down, K7 Random playback (it plays a sound randomly after each triggering). Special function: When K1 is short-circuited to GND first and use this mode in the config file and once power is applied, the device is able to play a sound in a loop or play multiple sounds one by one in a loop until power is off.
4	In this mode, audio file 000.mp3 will play in a loop when power is applied. Any button from K1 to K7 (associated 001.mp3 to 007.mp3) can interrupt it and switch to play the associated sound file. Once the associated sound file finishes the playback, audio file 000.mp3 will continue to play in a loop.
5	Each button from K1 to K7 have their associated folders from 01 to 07 respectively. Each folder can store multiple files (for example from 001.mp3 to 030.mp3). Short press the button to play sound file 001.mp3, and short press again to play the next file 002.mp3, and so on. When the last audio file finish playing, short press again to go back to playing file 001.mp3. During playing, if you press the button again, the playback will be interruptible and it will play next file.
6	The same as mode “5”, but during playing, the playback will be uninterruptible.
7	Each button from K1 to K7 have their associated folders from 01 to 07 respectively. Each folder can store multiple files (for example from 001.mp3 to 030.mp3). Short press the button to play all of the audio files in order one by one. During playing, if you press the button again, the playback will be interruptible and it will play next file and continue to play the rest of the files. When the last audio file finishes playback, it’ll stop.
8	Combination of the first four trigger ports (S1-S4) for playback of maximum 15 audio files (pulse interruptible)
9	Combination of the first four trigger ports (S1-S4) for playback of maximum 15 audio files (hold and play in a loop)

Note: If there is no config file on the built-in flash memory/micro SD card/USB flash drive, the device will always works with the mode “0” by default.

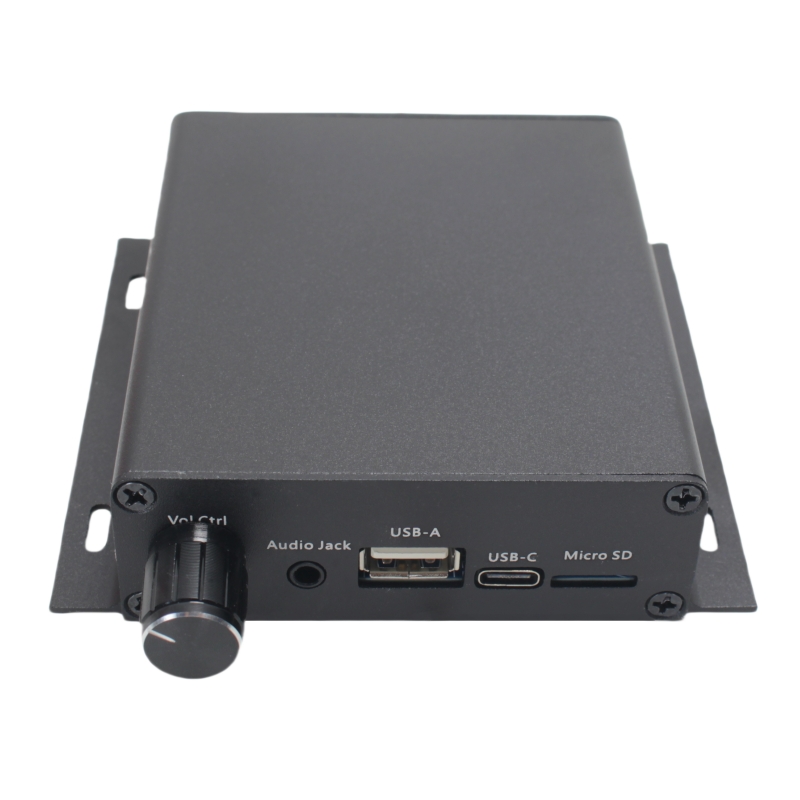

View of Interfaces

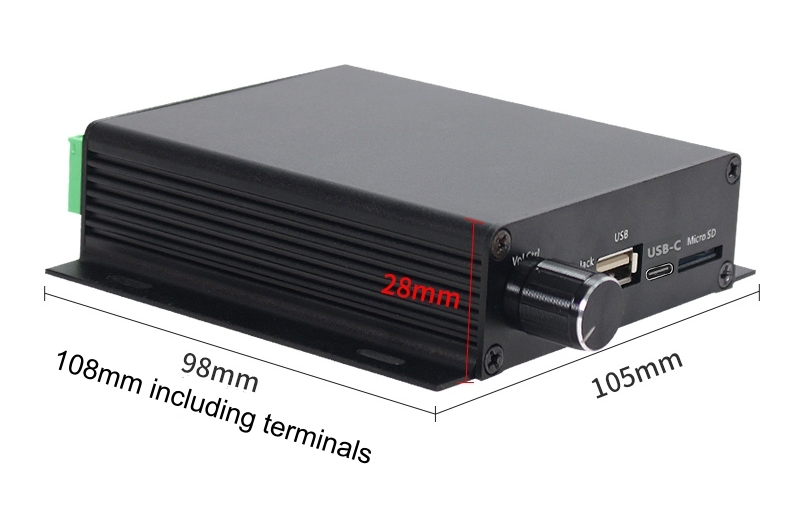

Dimensions


Examples of Wiring Connection

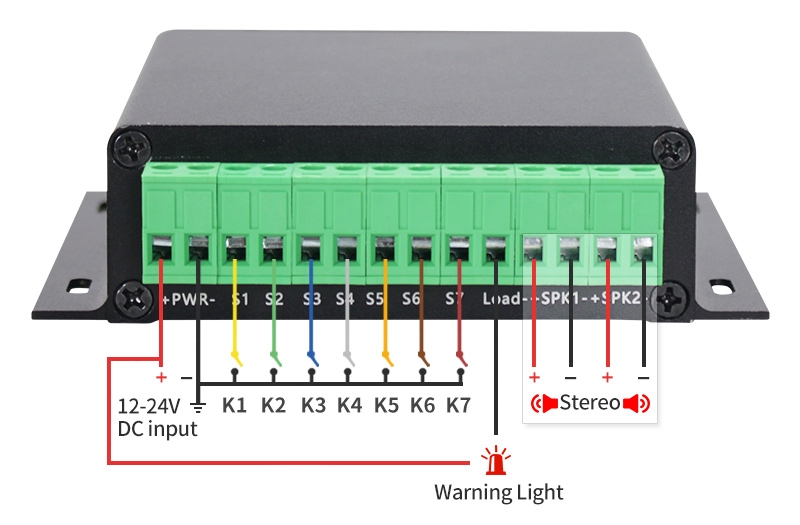

1. Negative trigger version

negative trigger version.jpg

Note: The negative trigger version also can be activated with a low level signal (0V) from a PLC or controller. The PLC or controller needs to share ground with the player in advance.

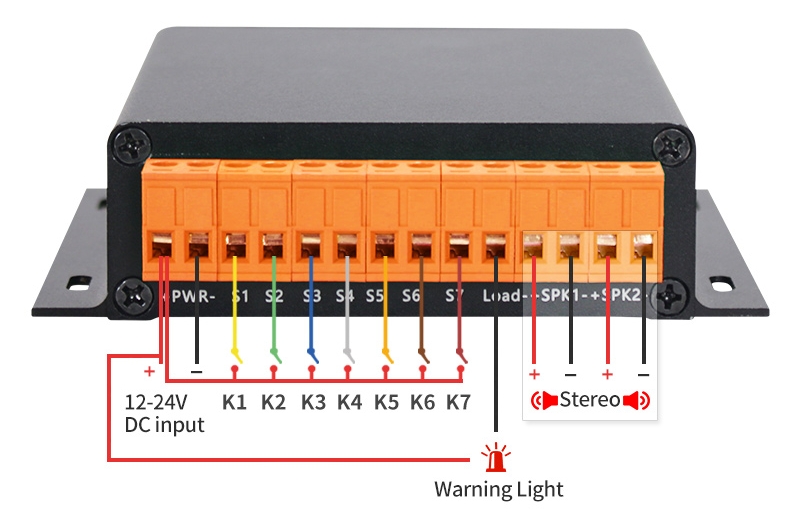

2. Positive trigger version

positive trigger version.jpg

Note: The positive trigger version also can be activated with a high level signal (12-24V) from a PLC or controller. The PLC or controller needs to share ground with the player in advance.

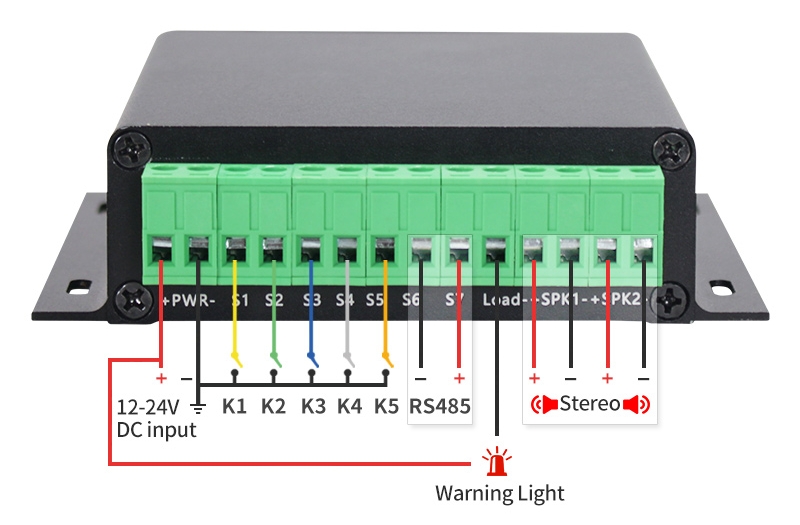

3. 5 trigger inputs (negative trigger) + RS485 version

5 triggers+rs485_副本.jpg
