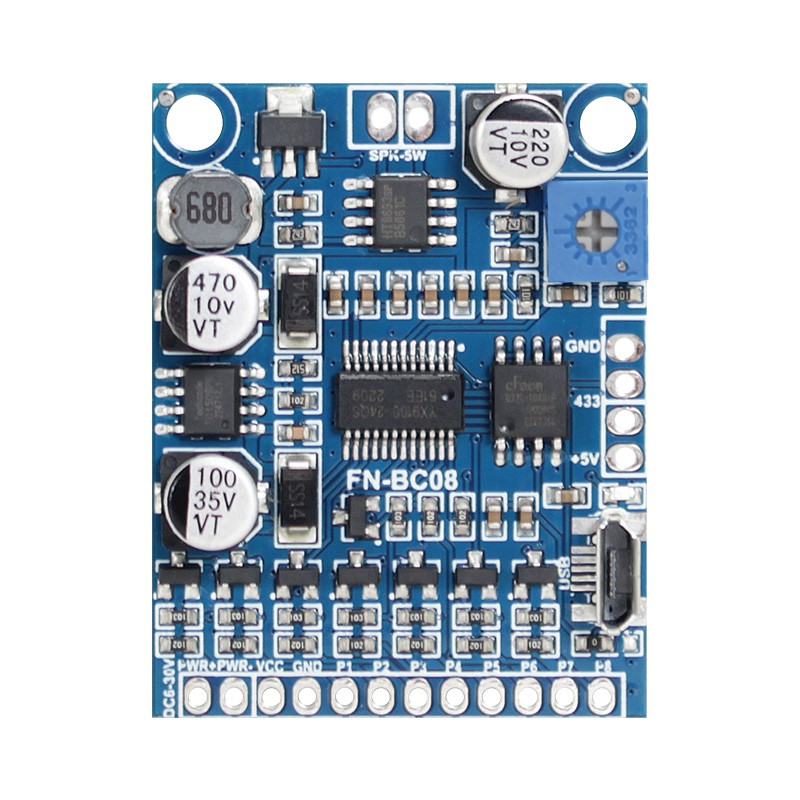

FN-BC08 MP3 Sound Board for Car Start Horn and Reverse Horn 8 Trigger Input Audio Player Sound Module

0

MP3 player mode

In this mode, P1 works as Next (uninterruptible), P2 as Next (interruptible), P3 as Shuffle Playback (uninterruptible), P4 as Shuffle Playback (interruptible), P5 as Play/Pause, P6 as Stop, P7 as Previous (uninterruptible), P8 as Previous (interruptible).

1

Level hold for loop playback

In this mode, a button must be held/maintained to the trigger for audio file to complete. The audio file will only play back while button is held/maintained. During playback once the button being held is removed, the playback will be stopped/canceled. Once the button is kept holding, when the playback of the audio file is finished, it will start to play it repeatedly(loop playback).

2

Level hold for playback once

In this mode, a button must be held/maintained to the trigger for audio file to complete. The audio file will only play back while button is held/maintained. During playback once the button being held is removed, the playback will be stopped/canceled. Once the button is kept holding, when the playback of the audio file is finished, it will stop.

3

Pulse interruptible

In this mode, short press the button to start playback. It is possible to interrupt the playback by pressing the same button used to activate. Once playback is interrupted, it will automatically restart the audio file immediately. It’s also possible to interrupt the playback by pressing any of the other 7 buttons. Once playback is interrupted, it will automatically start the sound that is associated with the button pressed.

4

Pulse uninterruptible

In this mode, short press the button to start playback. It's not possible to interrupt the playback by pressing the same button or the other buttons. Once an audio file is triggered, the audio file will not be able to be interrupted/canceled during playback. The playback will only end when the audio file has played its entirety.

5

Play multiple audio files in order per button (interruptible)

Each button from P1 to P8 have their associated folders from "01" to "08" respectively. Each folder can store multiple files (for example from “001.mp3” to “030.mp3”). Short press the button to play audio file “001.mp3”, and short press again to play the next file “002.mp3”, and so on. When the last audio file finishes playing, short press again to go back to play file “001.mp3”. During playback, if you press the button again, the playback will be interruptible and it will playnext file.

6

Play multiple audio files in order per button (uninterruptible)

The same as mode “5”, but during playback, if you press the button again, the playback will be uninterruptible.

7

Play multiple audio files at random per button (interruptible)

Each button from P1 to P8 have their associated folders from “01” to “08” respectively. Each folder can store multiple files (for example from “001.mp3” to “030.mp3”). Short press the button to play an audio file at random. During playback, if you press the button again, the playback will be interruptible and it will playanother audio file at random.

8

Play multiple audio files at random per button (uninterruptible)

The same as mode “7”, but during playback, if you press the button again, the playback will be uninterruptible.

9

Advertising machine mode /museum audio player mode

In this mode, audio files in the folder “00” will automatically play one by one in a loop when power is applied. Any trigger from P1 to P8 (associated with “001.mp3” to “008.mp3” respectively in the root directory) can interrupt it and switch to play the associated audio file. Once the associated audio file finishes the playback, the audio files in the folder “00” will continue to play in a loop.
