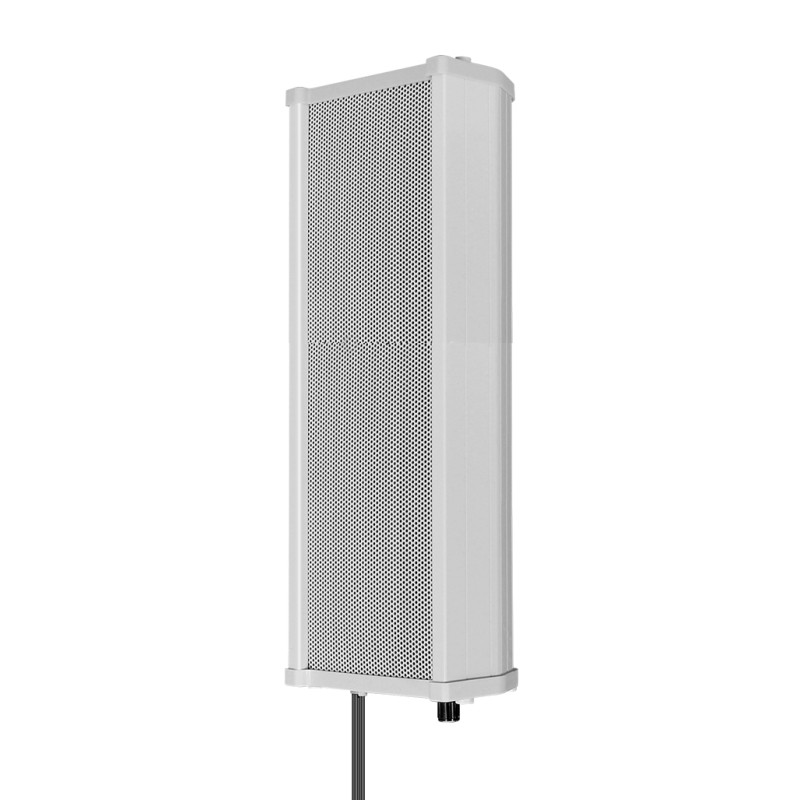

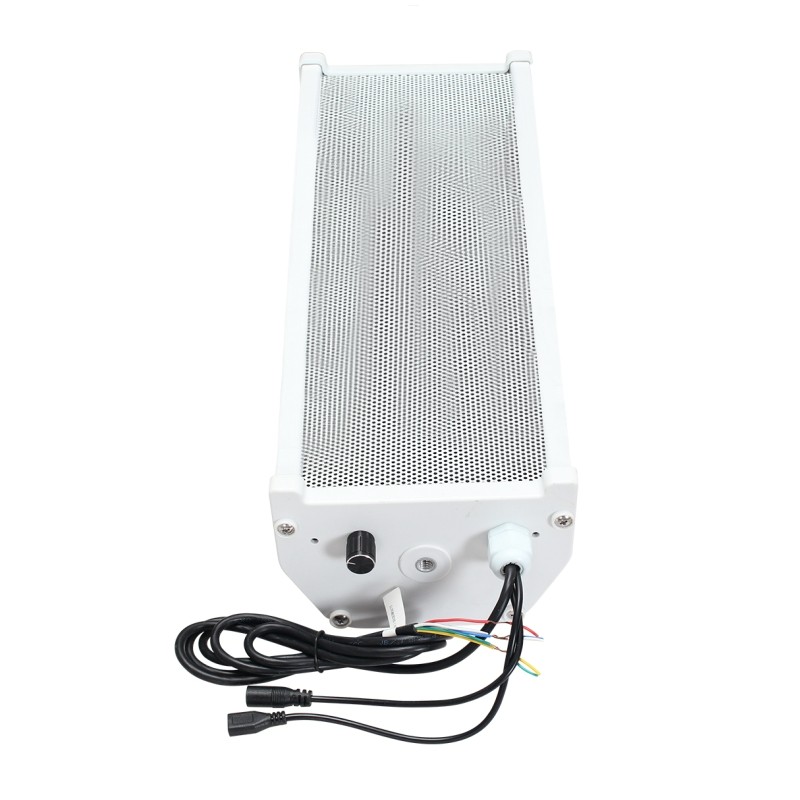

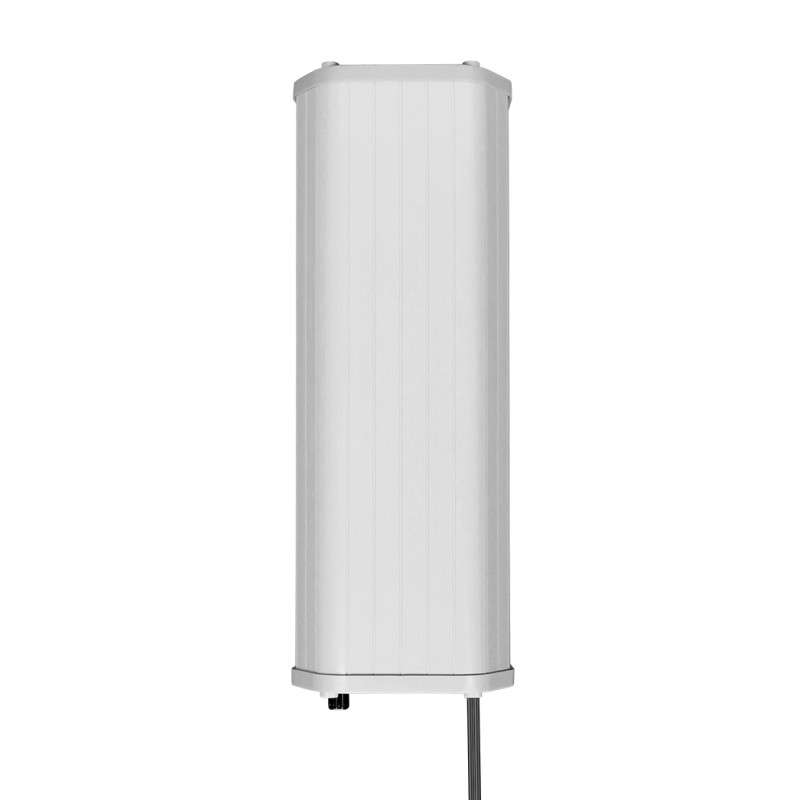

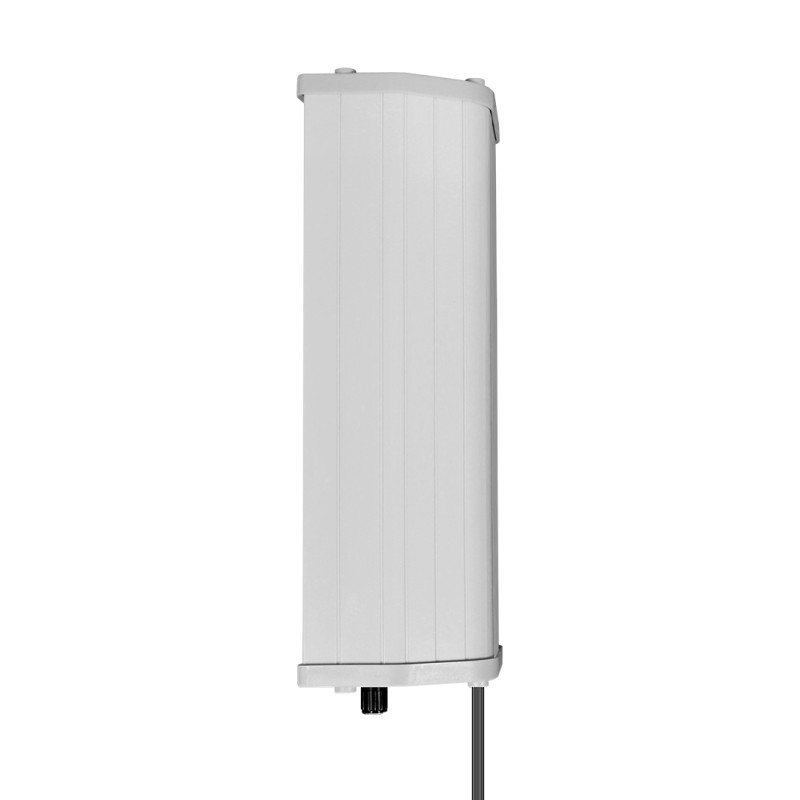

FN-CS50 High-power Triggerable Audio Player Column Speaker 50W RS485 Sound Player Loudspeaker Audio Alert System

Features

1. 4 triggers (input channels), RS485 and Modbus RTU versions are available.

2. Made of zinc alloy, rugged and durable.

3. Built-in a high quality audio decoder with great sound quality.

4. Equipped with a 8MB flash memory that can store about 8 minutes long MP3 format files (128Kbps).

5. Update audio files easily through the attached USB data cable that connects to computer.

    -It'll be detected as a USB flash drive on computer. No need any program/sofware.

6. Main features of the 4 triggers (input channels) version:

    -Can be triggered by a PLC/controller or any equipment with an alarm output that sends low level (0V) signals.

    -Can be triggered by buttons, switches, relays, sensors, etc.

    -Supports multiple triggers modes (functions) and easy to set a trigger mode with a config file.

7. Main features of the RS485 version and the Modbus RTU version:

    -Supports specifying a certain track to play one time.

    -Supports specifying a certain track to play in a loop.

    -Supports specifying all tracks in a certain folder to play in a loop.

    -Supports playing all tracks in the memory in a loop.

    -Supports playing all tracks in the memory in random.

    -Supports setting volume.

    -Able to set different communication baud rates (2400/4800/9600/19200/38400/57600/115200/256000/35250).

8. Equipped with a high quality 50W class D amplifier for a loud sound output.

9. Sound volume is adjustable through the knob.

10. Industry grade design and stable performance.

Product parameters

1. Working voltage: DC 12V-24V

2. Working current: ≥5000mA (@12V)

3. Standby current: ≤10mA

4. Power consumption: ≤50W

5. Internal flash memory size: 8MB (by default)

6. Audio format: MP3 or WAV

7. Sound intensity: ≤120dB

8. Protection class: IP65

9. Cable length: about 120cm

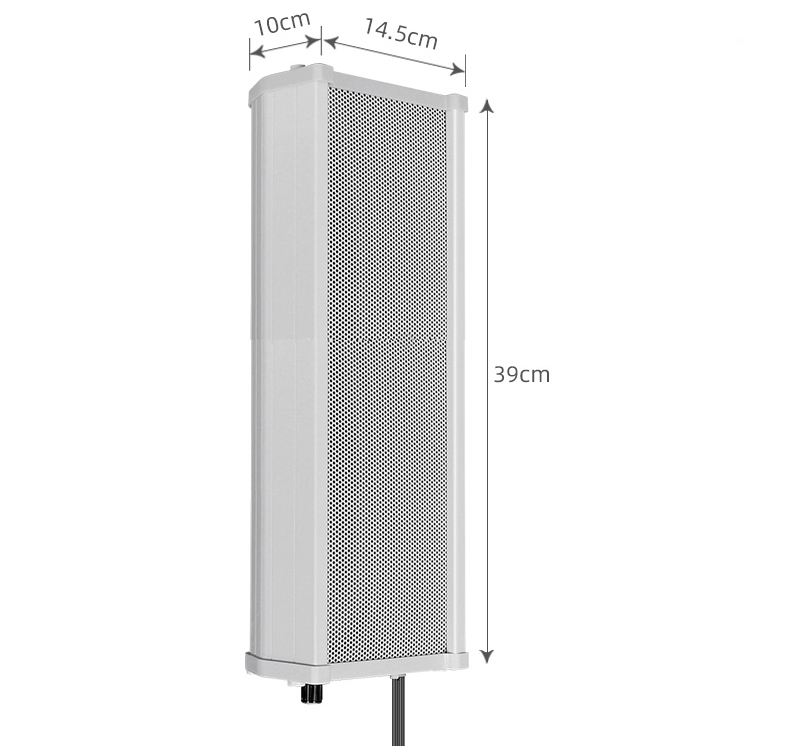

Dimensions

Installation
