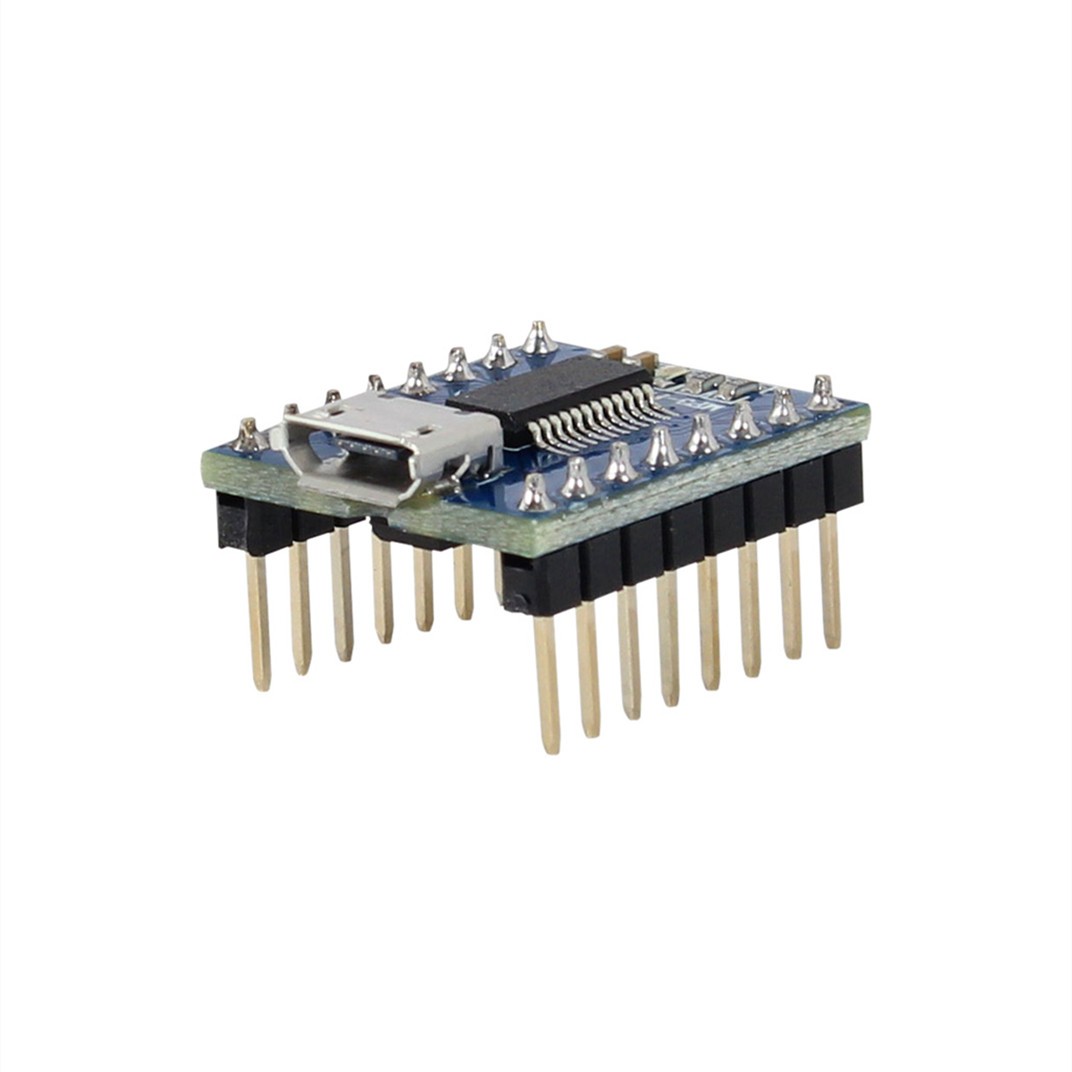

MP3-FLASH-16P Serial MP3 Module with Built-in Flash Memory

MP3-FLASH-16P is a simplified serial MP3 module that uses a high quality MP3 and WMV decoder chip. It is able to play back specified audio files and realize other functions through simple UART serial commands provided. It uses a SPI flash memory as the storage unit, and users can update audio files easily through directly connecting it with PC as simple as using a USB flash drive. Without the cumbersome underlying operating, easy to use, stable and reliable are the most important features of this module.

Features

1. Supports MP3 format and WAV format audio files.

2. Supports sampling rate (KHZ): 8/11.025/12/16/22.05/24/32/44.1/48

3. 24-bit DAC output and supports dynamic range 90dB and SNR 85dB.

4. Supports 8Mbits, 16Mbits, 32Mbits, 64Mbits, and 128Mbits SPI flash memory.

5. Update audio files via the micro USB port through connecting with PC. Easy to operate and no need any software.

6. UART serial control mode and key control modes are available.

7. Supports combination playback (group playback) that can realize telling time, temperature and etc.

8. Supports advertising spots during playback of a track.

9. Supports random playback and repeat/loop playback.

10. 30 levels adjustable volume.

11. Directly drives a 3W speaker and also possible to connect with an external headphone or amplifier.

12. PCB size: 25 x 0mm


Pin Configuration
