Recordable Audio Speaker MP3 Sound Player with External PIR Motion Sensor (FN-H865-PIR)

Features

1. It adopts a high-quality external PIR motion sensor.

2. Built-in high quality MP3 player with great sound quality.

3. Built-in 4MB flash memory as the storage device (memory can be expanded to max. 16MB).

4. Update sound files easily on computer through USB connection.

    -No need any software. It will be detected as a USB flash drive on computer.

    -There is a config file "Config.txt" on the memory. Please never delete it.

5. Equipped with a high-quality class D amplifier.

6. Adjustable sound volume through the blue pot on the internal circuit board.

7. Small body but loud volume. Suitable for any indoor occasions.

8. Mounting holes available on both of the PIR motion sensor and the speaker.

   - Also fine to fix using a double-sided adhesive.

9. Outline size of the PIR motion sensor: 52L*36W*23H mm

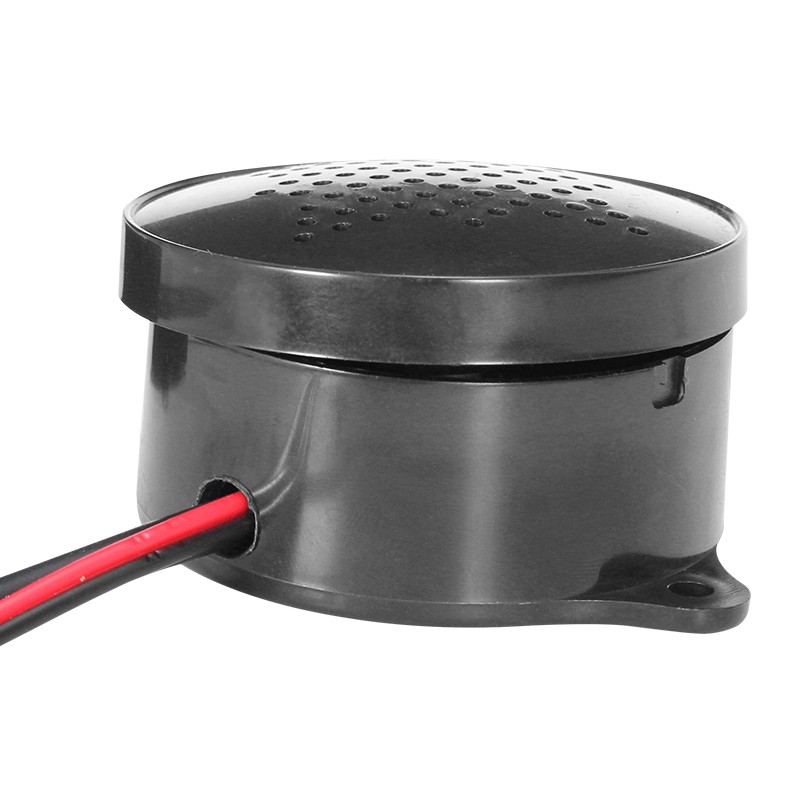

10. Outline size of the speaker: 65D*32H mm

11. Length of the cable between PIR motion sensor and the speaker: 42 cm

12. Length of the power wires: 28 cm

Technical Parameters

1. Working voltage: 9V to 24V DC

2. Working current: ≤1000mA

3. Detecting distance: ≤6m (not adjustable)

4. Detecting angle: 120

5. Power consumption: ≤3W

6. Flash memory size: 4MB

7. Audio format: MP3 (32Kbps-192Kbps)

8. Sound pressure level: ≤100dB
